Bonomi V-Ball Split-Body ANSI 150 Flanged Valves Provide Precise Flow Control

Print Print this Article | Send to Colleague

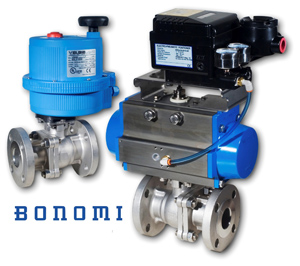

Bonomi North America, Charlotte, N.C., USA, has introduced a new line of ANSI Class 150 flanged industrial V-port ball valves designed for precise flow control and easy automation. The new split-body valves are available with 30°, 60°, or 90° V shaped ports for superior flow control characteristics. They are particularly suited to use with corrosive fluids, gases, and all steam applications.

New Series VF300, VF600, and VF900 raised-face flanged valves are currently available in sizes ½ in. to 6 inches. They feature an ASTM A351-CF8M stainless steel body and ball, and a 316 stainless steel blowout proof stem and meet ANSI 16.5, 16.10, and 16.34 standards.

Their ISO 5211/DIN 3337 mounting pad and stem accept any appropriately sized ISO standard actuator. They are performance-matched to Bonomi’s own Valbia brand electric and pneumatic actuators in single-number automated valve packages for the most exacting flow control in critical process applications.

High-performance seats of 50% stainless steel powder and 50% PTFE provide outstanding and strength sealing properties. Live-loaded stem packing is standard. An anti-static device prevents static electric discharges during operation.

Like all Bonomi ball valves they are 100% tested in the open and closed position before shipping. For more information on VF300, VF600 and VF900 Series valves or other Bonomi products, contact Bonomi North America at (704) 412-9031 or visit online.
