Cortec Introduces EcoShield Super Barrier Paper and Linerboard

Print Print this Article | Send to Colleague


Moisture is a major threat to raw materials and finished goods of all kinds—particularly those made of metal and prone to rust and corrosion. Greases and oils sometimes used as lubricants or rust preventatives on metal components add another problem by threatening to leak through packaging and contaminate surrounding areas.

Waxed or polycoated papers are traditional moisture-resistant packaging options for problems like these. However, such coated papers pose an environmental problem because they are not recyclable and repulpable. Even if recycled back into the pulp and paper stream, they would first have to go through a costly process of separating the paper base from the coating.

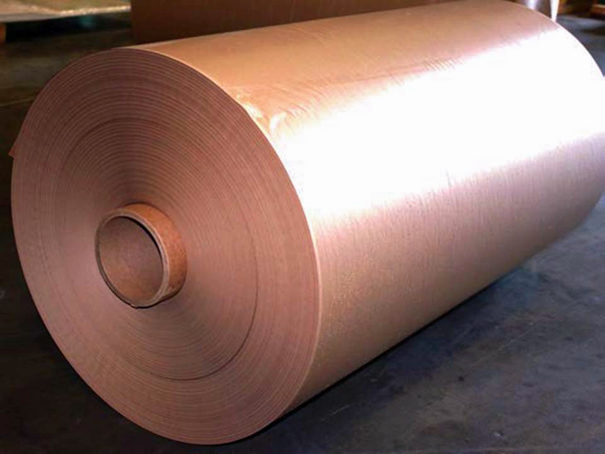

To avoid this environmental problem, Cortec® Corp., St. Paul, Minn., USA, has developed an environmentally acceptable replacement to unrecyclable polycoated and waxed papers. Cortec’s new high gloss EcoShield® Super Barrier Paper and Linerboard relies on a water-based moisture barrier coating for moisture resistance. The technology makes the paper fully recyclable and repulpable without requiring costly processes to remove the coating from the paper. In addition to recyclability, Cortec’s EcoShield Super Barrier Paper and Linerboard demonstrated better water vapor barrier properties than polycoated paper and waxed paper during testing.

To evaluate the moisture resistance of EcoShield Super Barrier and Linerboard, the barrier paper was tested against a comparable polyethylene coated paper and a commercial waxed paper according to ASTM E-96 at 73°F (23°C) and 50% relative humidity. The EcoShield barrier paper and linerboard showed a water vapor transfer rate of 0.32-0.37 grams per hour on a square meter of paper. A polycoated paper in the same test allowed slightly more water vapor to pass through in the same time frame, at the higher rate of 0.47-0.71 grams per hour.

The waxed paper was much less resistant to water vapor, allowing it to transfer at a rate of 6.5-6.9 grams per hour on the same size of the paper. Though it is not intended for applications involving constant water contact, the shiny side of the EcoShield paper and linerboard also has the ability to repel liquid water. Its TAPPI T-441 Cobb Water Absorption rate is less than 0.3 grams of water per square meter in two minutes.

The EcoShield paper and linerboard also has excellent oil and grease resistance. It registers a high kit test value of 12, representing the highest amount of an aggressive liquid solution to remain on the paper surface without causing the paper to fail. The high gloss paper not only protects against the ingress of moisture or grease into a package, but also protects against the leaching of oil and grease out of a package. This is important when manufacturer’s specifications require the use of greasy rust preventatives, or when the metal equipment being wrapped, packaged, or shipped contains lubricated parts.

EcoShield Super Barrier Paper and Linerboard can discourage these oils and greases from seeping out of the package and causing packaging failure or contamination of nearby materials.
The versatility of EcoShield Super Barrier Paper and Linerboard as a flexible, moisture barrier material allows it to be used for a variety of packaging applications and beyond:
  • Protecting moisture sensitive components
  • Wrapping oily or greasy parts
  • Lining wood pallets or corrugated boxes
  • Packaging products
  • Keeping work surfaces clean with a disposable cover.
EcoShield Super Barrier Paper and Linerboard is available in custom sizes and as sheets or perforated rolls for the convenience of the user.

Whether moisture threatens from the inside or the outside of a package, EcoShield Super Barrier Paper and Linerboard is a more environmentally friendly way to protect against damage from moisture, grease, and oil. By coating water based barrier technology onto biobased material, Cortec has made a fully recyclable, environmentally acceptable, and competitively performing replacement for polycoated and waxed papers.

More information about EcoShield Super Barrier Paper and Linerboard is available online.
